Three Piece Segmented Clamps

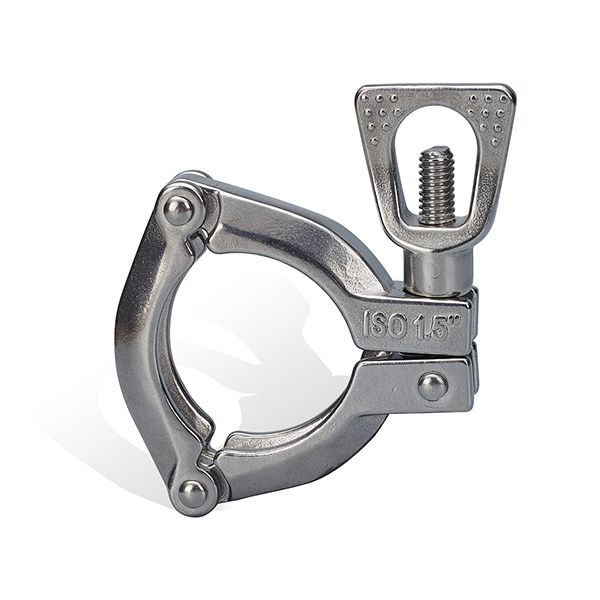

3 Piece Segmented Clamps, 13 ISO-3P
- Material: AISI 304
- Size: Ø25-305 &1"-24"
- Standards: ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
- Customized service can be provided according to your drawings or samples.
As a type of hygienic clamps, Lisin 13 ISO-3P three segment clamp is easy to use. Made from AISI stainless steel, the three-piece hinge design clamp offers the most uniform distribution of clamping pressure.

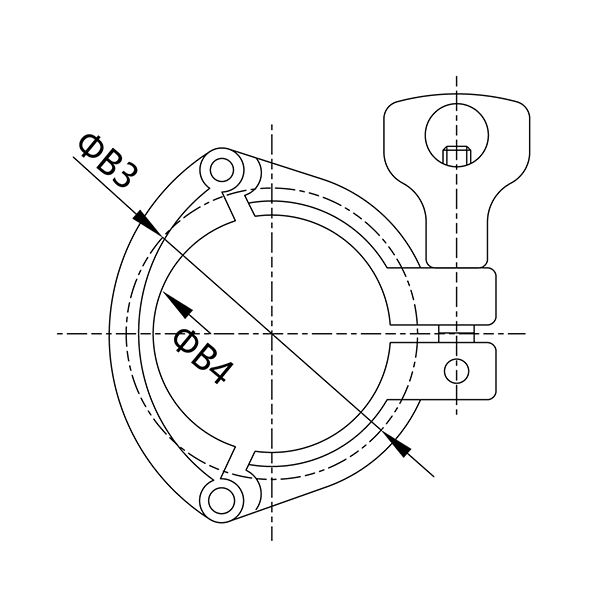

| Size | ØB3 |
| 1" | 53.9 |
| 1 1/2" | 53.9 |
| 2" | 67.4 |
| 2 1/2" | 80.9 |
| 3" | 94.4 |
| 4" | 122.4 |
| 4.5" | 133.2 |
| 5" | 148 |
| 5" | 168 |
| 5.5" | 159 |
| 6" | 170.4 |
| DN150 | 187 |
| 6" | 190 |
| 8" | 220 |
| DN200 | 237 |
| 8" | 244 |
| 10" | 272 |
| 10" | 300 |
| 11" | 290 |
| 12" | 323 |
| 12" | 355 |
| 13" | 356 |
| 14" | 386 |
| 15" | 406 |
| 16" | 436 |
| 17" | 456 |
| 18" | 486 |
| 19" | 506 |
| 20" | 536 |
| 24" | 638 |

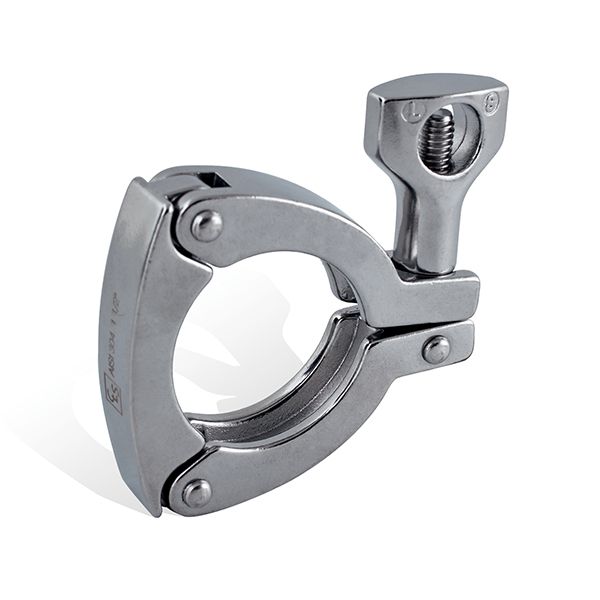

3 Piece Segmented Clamps 13MHHS
- Material: AISI 304
- Size: Ø25-305 &1"-12"
- Standards: ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
- Customized service can be provided according to your drawings or samples.
Lisin 13MHHS three segment clamp is made from 304 stainless steel. The three-piece hinge design allows even pressure around the connection point. This heavy duty Tri-clamp provides a better overall seal on the system.

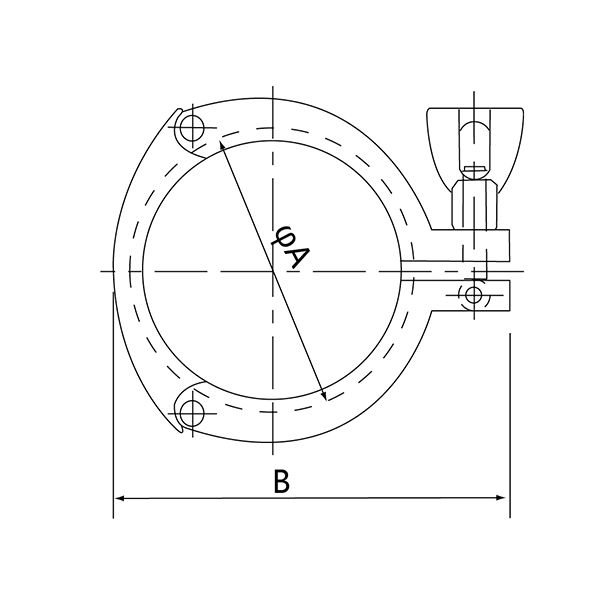

| Size | ØA | B |
| 1"-1.5" | 56 | 80 |
| 2.0" | 69.5 | 94 |
| 2.5" | 83 | 109 |
| 3.0" | 96.5 | 126 |
| 4.0" | 124.5 | 154 |
| 6" | 170.4 | |
| 8" | 220 | |
| 10" | 272 | |
| 12" | 323 |
