High Pressure Clamp, 13MHP
- Material: AISI 304
- Size: Ø12.7-305 & 1/2"-12"
- Standards: ASTM, 3A, SMS, DIN, IDF, RJT, UL213, etc.
- Customized service can be provided according to your drawings or samples.

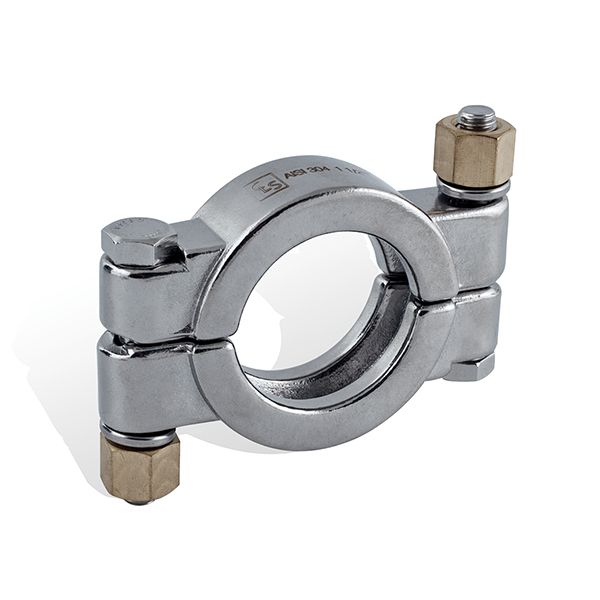

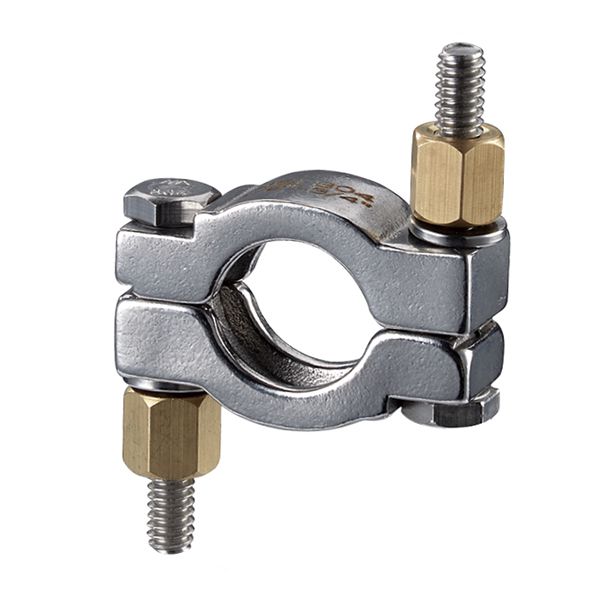

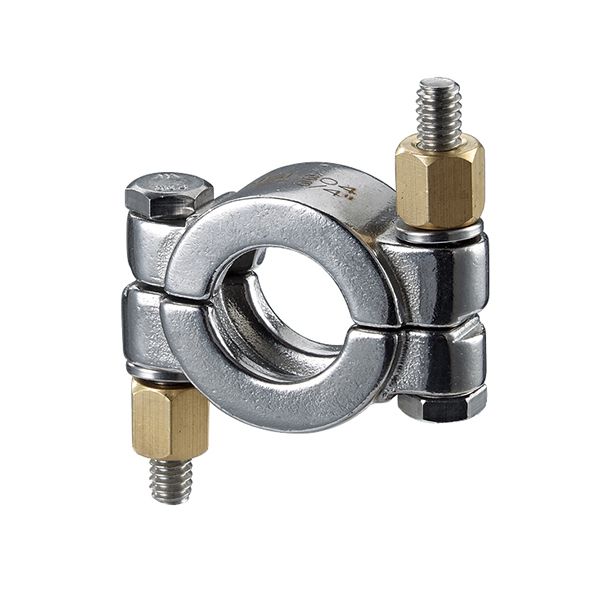

13MHP high pressure clamps, also knowns as heavy duty pipe clamps, high pressure bolted clamps are constructed from 304 stainless steel.
The bolt design of these sanitary clamps enables them to withstand higher pressures than hinged clamps of same size.

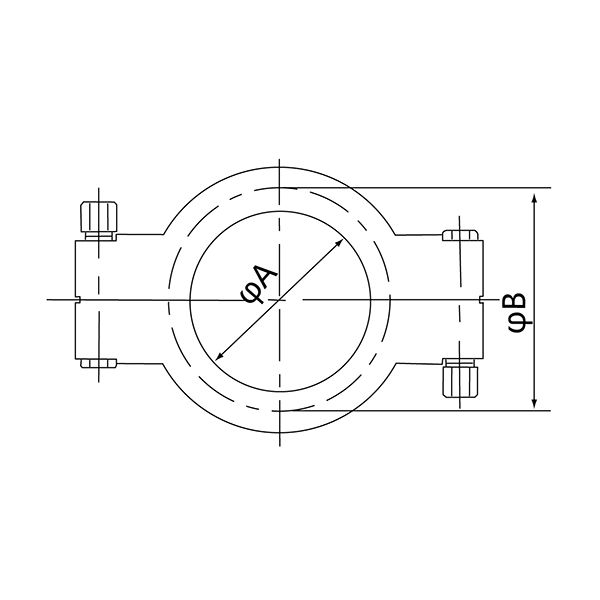

| Size | ØA | ØB |
| 1/2"-3/4" | 20 | 28 |
| 1"-1.5" | 43.3 | 52.0 |
| 2.0" | 56.4 | 65.5 |
| 2.5" | 69.5 | 79.0 |
| 3.0" | 77.5 | 92.5 |
| 3.5" | 102 | 108 |
| 4.0" | 108.8 | 120.5 |
| 4.5" | 124 | 133 |
| 5.0" | 135.5 | 148 |
| 5.5" | 149 | 158 |
| 6.0" | 158 | 170 |
| DN150 | 177 | 187 |
| 8.0" | 206 | 220 |
| DN200 | 232 | 237 |
| 10" | 258 | 272.8 |
| 11" | 282 | 289 |
| 12" | 309 | 327.6 |
