Stainless Steel Flexible Coupling, Model 96MP

for Medium Pressure System

Stainless Steel Flexible Coupling, Model 96MP, for Medium Pressure System
  • Stainless Steel Flexible Coupling, Model 96MP, for Medium Pressure System
  • Stainless Steel Flexible Coupling, Model 96MP, for Medium Pressure System
  • Stainless Steel Flexible Coupling, Model 96MP, for Medium Pressure System

    • The model 96MP stainless steel flexible coupling is designed for medium pressure reverse osmosis system. We use high quality stainless steel materials to meet a variety of aggressive corrosive environments. The materials of the housing, bolt and nut are stainless steels are available of 304 or 316L, conforming to USA ASTM standards and optional.

    • Size: 3/4"to 12" (DN20 to DN300)
    • Rated working pressure: 600 psi (42 bar)
    • Only for SCH 40 groove pipe
    Request a quote

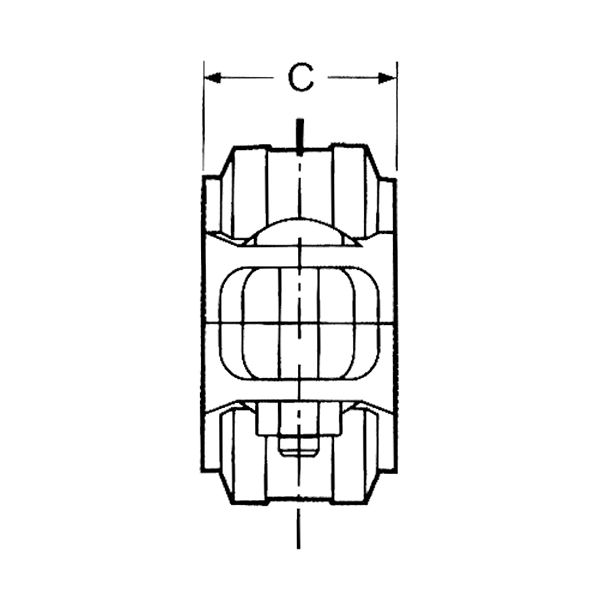

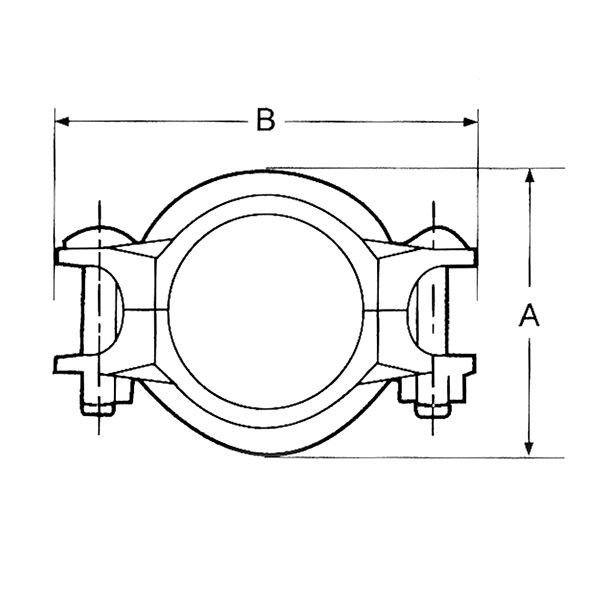

    Nominal Pipe Rated Working Pipe End Dimensions
    Size OD Pressure Separation A B C
    mm in mm in psi bar mm in mm in mm in mm in
    20 0.75 26.70 1.050 600 41.34 0-1.6 0-0.06 48 1.890 85 3.346 42 1.654
    25 32.00 1.260 600 41.34 0-1.6 0-0.06 52 2.047 92 3.622 42 1.654
    25 1 33.40 1.315 600 41.34 0-1.6 0-0.06 54 2.126 94 3.701 42 1.654
    32 38.00 1.496 600 41.34 0-1.6 0-0.06 61 2.401 101 3.976 44 1.732
    32 1.25 42.20 1.660 600 41.34 0-1.6 0-0.06 63 2.480 103 4.055 44 1.732
    40 1.5 48.30 1.900 600 41.34 0-1.6 0-0.06 70 2.756 112 4.409 44 1.732
    50 57.00 2.244 600 41.34 0-1.6 0-0.06 80 3.149 121 4.764 44 1.732
    50 2 60.30 2.375 600 41.34 0-1.6 0-0.06 82 3.228 124 4.882 44 1.732
    65 2.5 73.00 2.875 600 41.34 0-1.6 0-0.06 96 3.780 148 5.827 44 1.732
    65 76.10 3.000 600 41.34 0-1.6 0-0.06 100 3.937 152 5.984 44 1.732
    80 3 88.90 3.500 600 41.34 0-1.6 0-0.06 113 4.449 166 6.535 44 1.732
    100 108.00 4.2501 600 41.34 0-3.2 0-0.13 134 5.276 187 7.362 48 1.890
    100 4 114.30 4.500 600 41.34 0-3.2 0-0.13 140 5.512 193 7.598 48 1.890
    125 133.00 5.250 600 41.34 0-3.2 0-0.13 160 6.299 215 8.465 50 1.969
    125 5 141.30 5.563 600 41.34 0-3.2 0-0.13 167 6.575 222 8.740 50 1.969
    150 159.00 6.259 600 41.34 0-3.2 0-0.13 186 7.323 242 9.528 56 2.205
    150 6 168.30 6.625 600 41.34 0-3.2 0-0.13 196 7.717 252 9.921 56 2.205
    200 8 219.10 8.625 600 41.34 0-3.2 0-0.13 255 10.039 319 12.559 60 2.362
    250 10 273.00 10.75 1200 82.68 0-3.2 0-0.13 342 13.465 400 15.748 65 2.559
    300 12 323.90 12.75 1200 82.68 0-3.2 0-0.13 397 15.630 478 18.819 65 2.559
    Material Specification

    Optional housing materials:

    • Grade CF8 conforming to ASTM A351 or A743
    • Type 316 conforming to ASTM A743 CF8M
    • Type 316L conforming to ASTM A743 CF3M
    • CE8M conforming to ASTM A890 Grade 2A
    • Austenic 904L (CN2MCuN) conforming to A351
    • Duplex 2205 (CD3MN) conforming to ASTM A890 Grade 4A
    • Super duplex 2507(CE3MN) conforming to ASTM A890 Grade 5A
    • Austenic 254SMO (CK3MCuN) conforming to A743

    Rubber Gaskets
    The gasket is C-shaped, made of EPDM (ethylene propylene diene monomer). The service temperature range is -50~150℃. It is recommended for used in applications including cold water, hot water, dilute acid, oil-free air and multiple chemical products. Not for use in petroleum applications.

    Bolts & Nuts

    • Type 304 stainless steel track bolts and nuts conforming to ASTM F-593
    • Type 316 stainless steel track bolts and nuts conforming to ASTM F-593
    • Type 316 stainless steel track bolts conforming to ASTM A193 B-8M, silicon bronze heavy duty nuts conforming to ASTM B98 C65100
